Conveydyn,
A new belt design to replace o-rings.

THE CONVEYDYN IS THE BELT
THAT WAS MISSING FROM THE CONVEYING RANGE
.

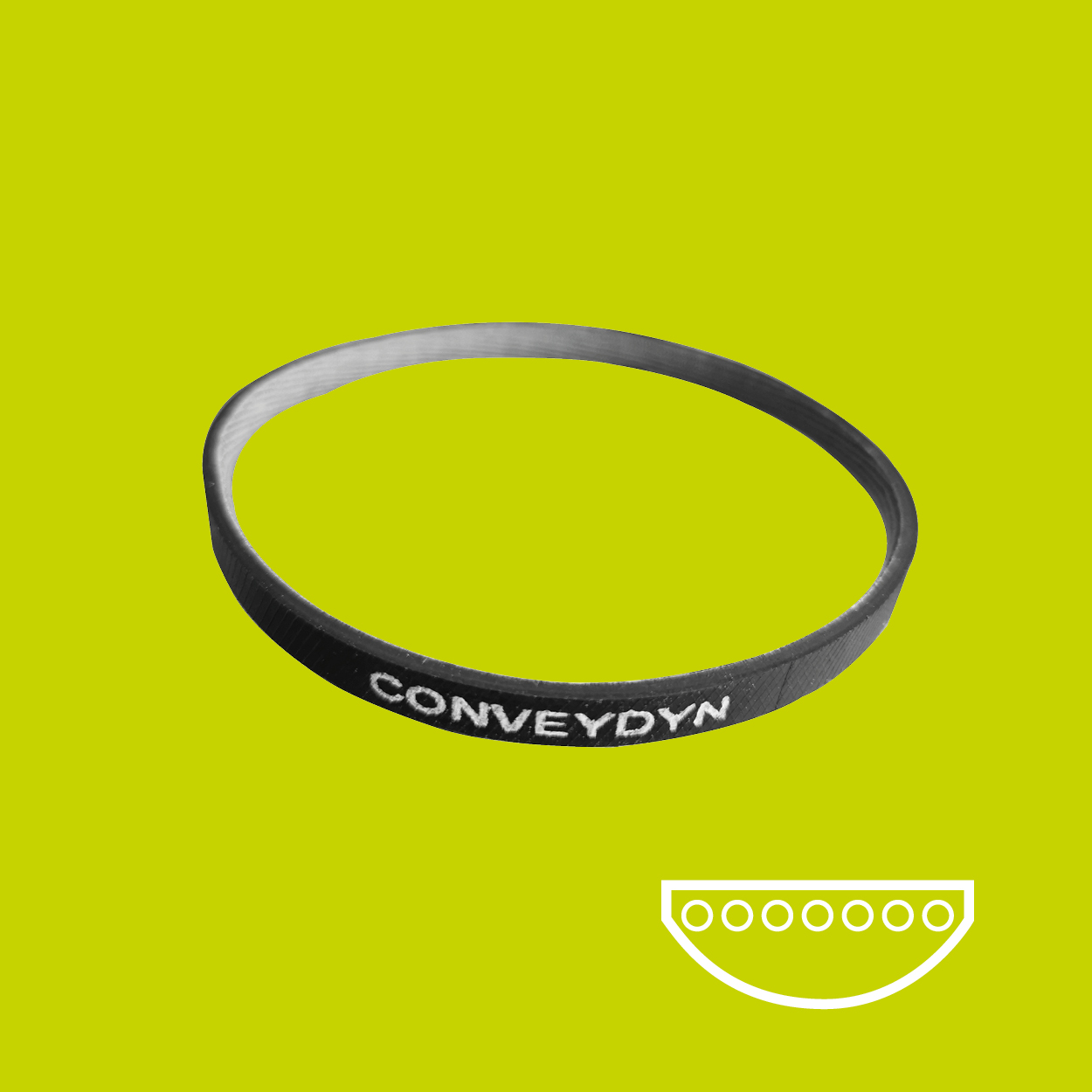

The CONVEYDYN is a new elastic power transmission belt, specially dedicated to roller conveyor equipped with O-ring round belts in straight lines and in curves.

The CONVEYDYN can be fitted instead of O-rings without any change on your roller conveyor to benefit immediately of its great advantages.

  • Directly replaces existing O-ring belts
  • Higher torque transmission
  • Higher conveyor speed
  • Less power losses
  • Higher lifetime


CONVEYDYN BELT APPLICATIONS


Conveydyn Hutchinson

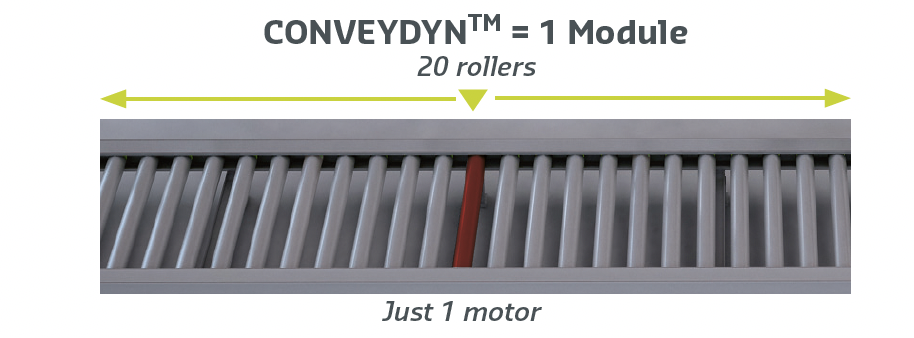

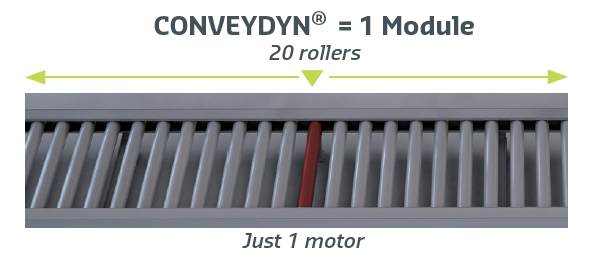

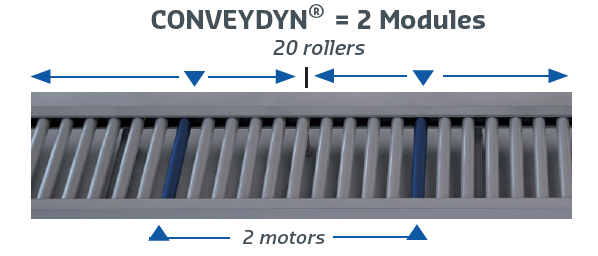

  • 1 CONVEYDYNTM module = 1 motor in central position for 20 slave rollers for same performances

  • Available for curve rollers



BENEFITS COMPARE TO O-RING

  • CONVEYDYN has 2.5 times higher torque transmission capacity

  • Less loss of speed and slippage

  • Better lifetime on straight and curve conveyor

  • Cost savings on motorized rollers
  • Speed gain of the module for same input power (compare to O-ring)

- 30 kg parcel : 7.4% speed gain on the last roller

- 70 kg parcel : 63,3% speed gain on the last roller

  • Gain in kWh for the same conveyor speed (compare to O-ring)

- 30 kg parcel on 1 km conveyor / 1 year = 10 000 kWh saved

- 70 kg parcel on 1 km conveyor / 1 year = 200 000 kWh saved



More details in our Conveydyn belt leaflet.
