Poly V Industry
The belt for all applications.
THE POLY V IS A POWER TRANSMISSION BELT
FEATURING MULTIPLE LONGITUDINAL RIBS.
Poly V belt transmits the torque and the power by contact of
the belt rib flanks and the pulley grooves.
The Hutchinson Poly V is a molded belt, its monobloc design guarantees:
- High power transmission
- Operating cost
Poly V belt Applications

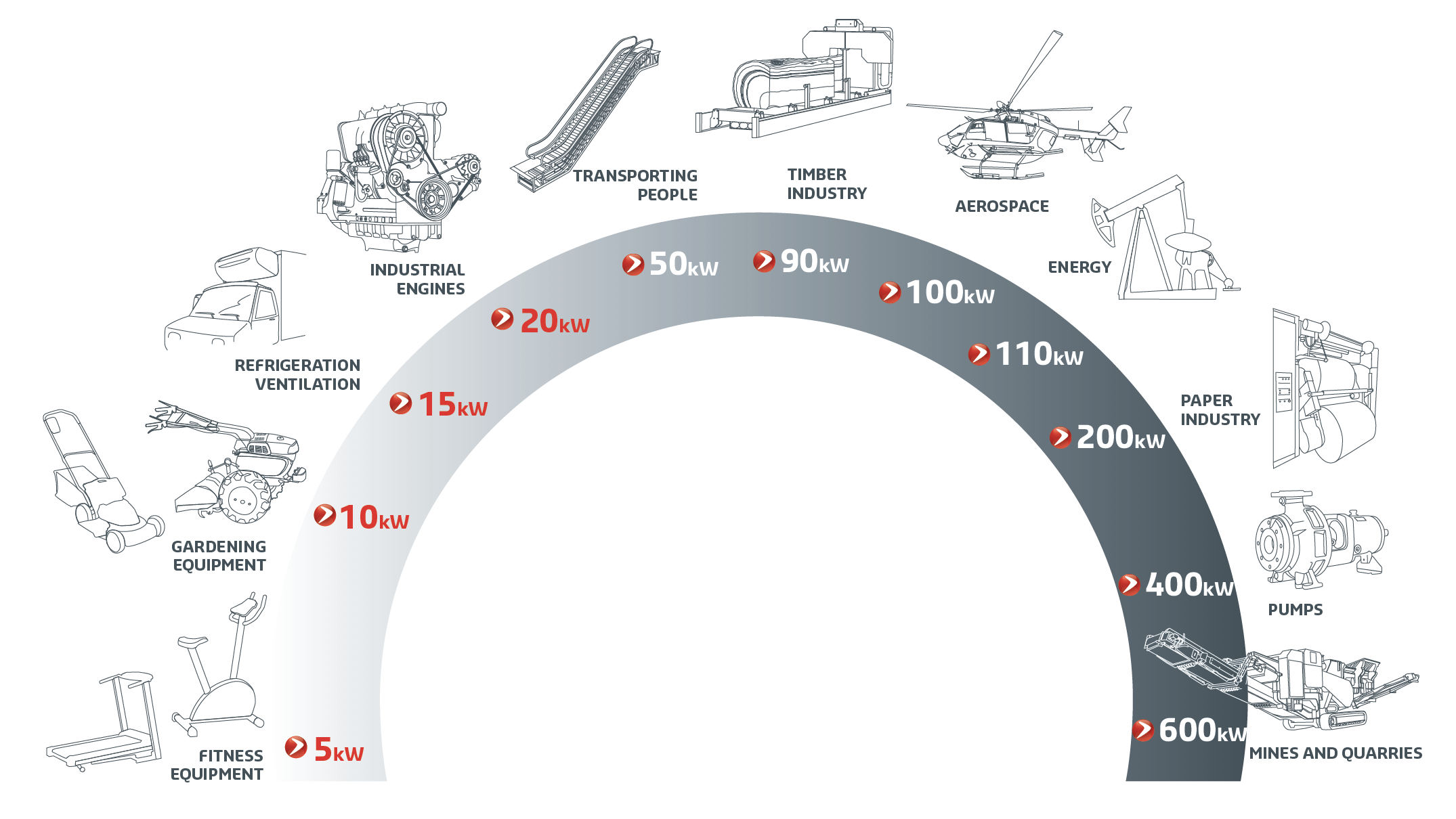

As a drive belt, the Hutchinson Poly V belt is able to cover a large engine range from light duty to heavy duty machineries (Fitness equipment, gardening, HVAC, Industrial Engines, Energy, Pumps, Mines and Quarries).
The Poly V has been designed with a larger contact surface area than V belts or flat belts with a single cord.
THE POLY V HAS MULTIPLE APPLICATION BENEFITS:
- Improved transmission ratio is possible (Poly V 1 : 60 vs V belt 1 : 20). Does away with the need for stepped pulleys.

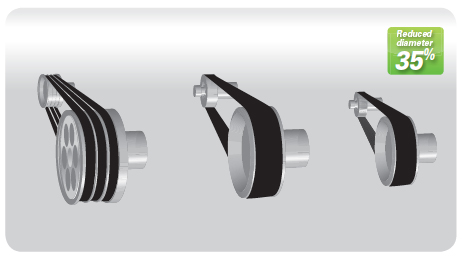

- Reduced diameters (diameters up to 9mm with the H profil compared to 50mm with V belts).
- Reduced belt width for a given geometry and the same power transfer.
Moreover, the Poly V can operate in flexion and counter flexion with the following benefits:

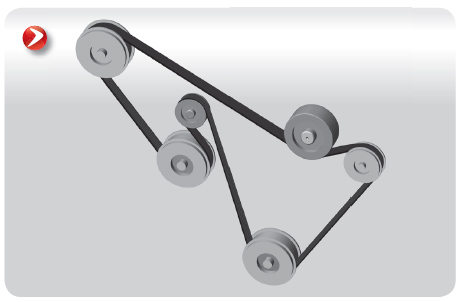

A single belt can drive several accessories: serpentine belt drive.
- Driving accessories, such as Idlers and drive pulleys from the back of the belt.
SMALLER CARBON FOOTPRINT:
Iso-tension and iso-geometry technical tests show that the Poly V can achieve an output several percent higher than Vbelt: over 98%, which can reduce energy consumption and sometime even engine size.
- Reduced diameter and pulley width.
- Reduced belt length.
- No need for inertia flywheels in some cases.
- Machining of pulleys is facilitated: the Poly V can be used on smooth pulleys (receivers).
Rapid set up (1 Poly V can replace up to 15 V belts).
- No need for matching.
- Increased lifespan.
Reduced consumption due to high output.
COMPLEMENTARY CUSTOMER SERVICES
Hutchinson Belt Drive Systems has designed:
- Easy Tension app to measure the frequency or the belt tension
of your Poly V Hutchinson Belt.
- Poly V Design mobile app to design a Poly V belt for
an electric engine in all simplicity.
More details in our Poly V belt leaflet.
